DESCRIPTION

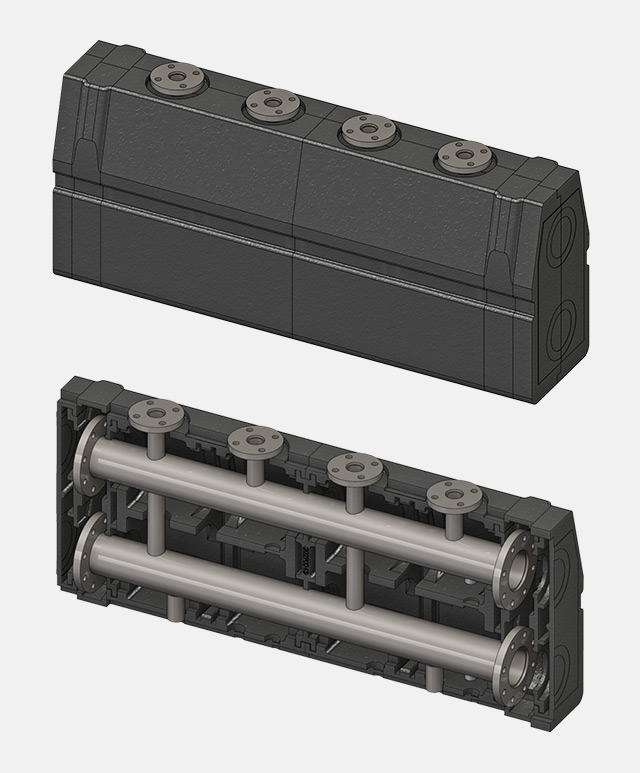

The Rhico C DN40 2 and 3 circuit distribution modular zone manifold is made with cylindrical flow and return tubes, completely separated and insulated. The main connections to the heat generator and to the secondary circuit are flanged.
Suitable for all applications
‘CONNECTA’ kit makes it possible to:-
- Install it in small and confined spaces (90° curved connection for the zone manifolds)
- Connect several zone manifolds of different sizes (pump group reduction kit)
- Satisfy any type of heating/cooling demand independently of the zone manifold connection (adapter kit for pump groups up to DN25)
The Rhico PFPR system is the first ready-to-use solution that supports twin head pump installations.
FEATURES

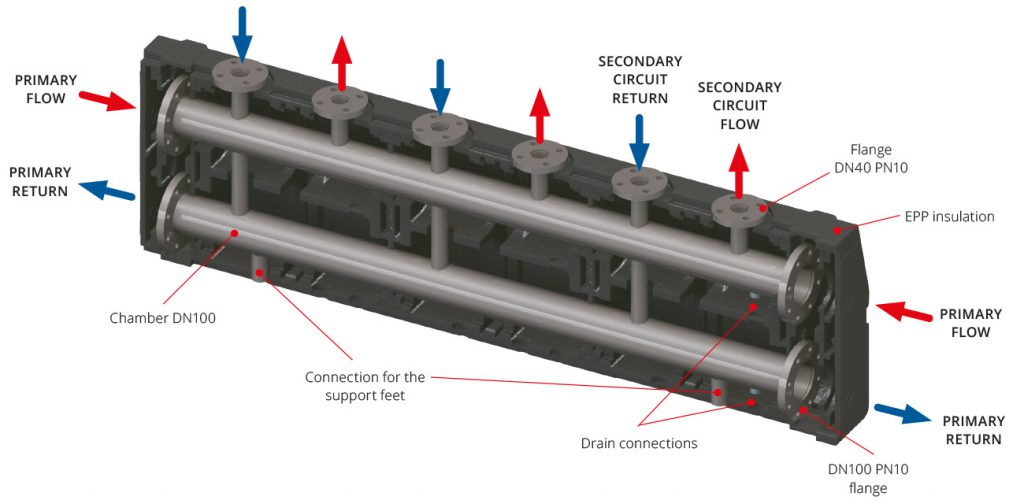

- Separated and fully insulated flow and return
- Tested and ready for the installation
- Access point for draining the system
- Painted with epoxy powder coating
- For heating and cooling
- Max. working pressure 10 bar
- Flange cover included in the insulation

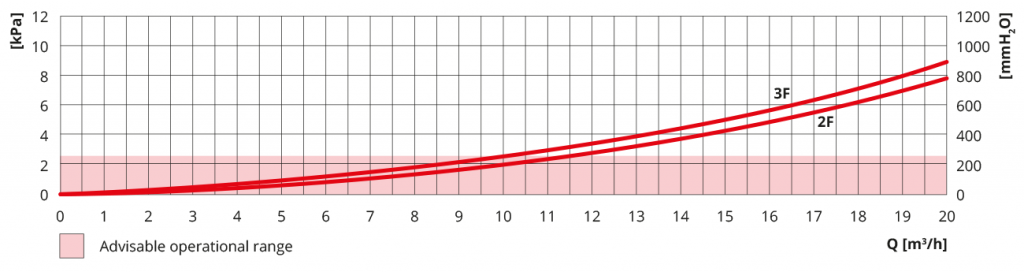

| Description | Part no. |
|---|---|
| C DN40 2F – 2 Zone Manifold – Insulated | 49043680 |
| C DN40 3F – 3 Zone Manifold – Insulated | 49043681 |
| Technical specifications | |
|---|---|
| Output ΔT 20 K | 750 kW |
| Max. flow rate | 33 m³/h |
| Max temperature | 100°C |
| Max. pressure | 10 bar |
| D hydraulic separator | 100 mm |
| Nominal Ø of primary circuit flanges |
DN100 PN10 8 holes |
| Nominal Ø of secondary circuit flanges |
DN40 PN10 4 holes |
| Internal speed | 1.00m/s |
| Material of zone manifold | Fe EN 10217-1 |
| Material of insulation | FEPP 40 g/l sp 30 mm 0.035 W/mK |
| Max overall dimension (packaging) 2 circuits |

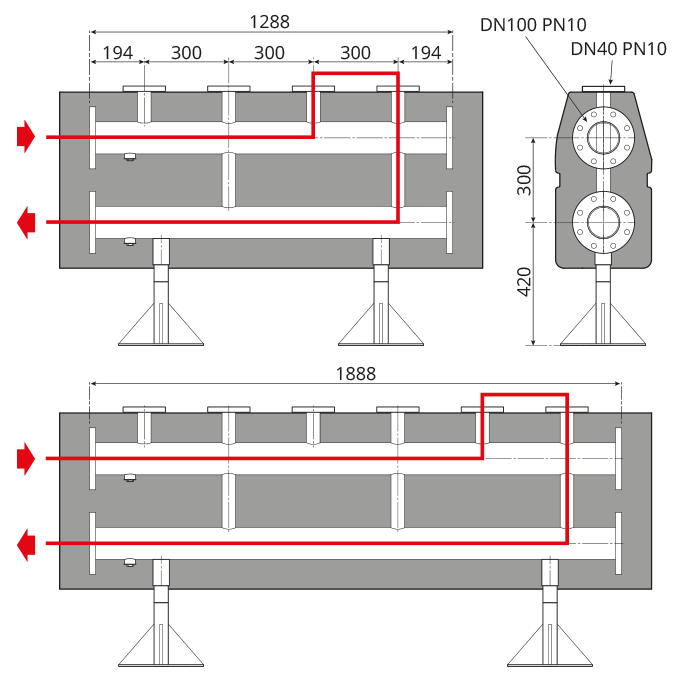

L 1360 x W 420 x H 958 |
| Max overall dimension (packaging) 3 circuits |
L 1960 x W 406 x H 958 |
| Painted with epoxy powder coating | |
| Accessories | Description | Part no. |
|---|---|---|
| KIT CONNECTA PC | Support | 49018205 |
| KIT CONNECTA FC | DN100 PN10 8 holes blind flanges | 49156730 |
| KIT CONNECTA VC | DN100 PN10 8 holes flanges connection screws | 49156710 |
| KIT CONNECTA A90 DN100 | On demand | 49201180 |
| KIT CONNECTA RG DN40 > DN32 | Reducers | 49201110 |
| KIT CONNECTA RG DN32 > DN25 | Reducers | 49200420 |
For further details and information on accessories, please go to the accessories page.
