DESCRIPTION
The Rhico HS 220 DN40/DN50 low loss header is designed for use with independent hydraulic circuits when in the same system, the pump of the primary circuit (energy source) and one or more pumps of the secondary circuit (heating circuit), operate together. Its use eliminates problems of variation in flow rate.

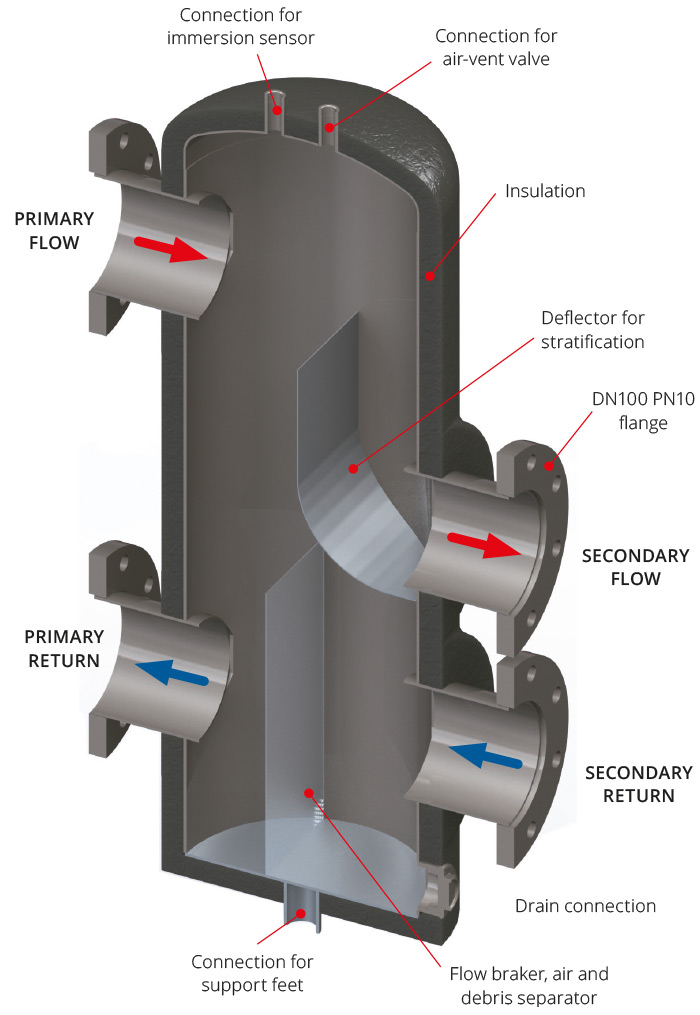

Deflector for stratification
The internal design of the main chamber includes a stratification deflector helping to reduce heat transfer between the flow and return circuits.
Air separator and dirt separator function
A ‘flow breaker’ deflector in the lower section of the main chamber improves the stratification of sediment and debris. Both systems also facilitate the breaking and expulsion of air microbubbles.
FEATURES
- Tested, insulated and ready to use
- Integrated system of air separation of debris
- Access point for draining the system
- Possibility of housing temperature sensors
- Painted with epoxy powder coating
- For heating and cooling
- Suitable for DN40 and DN50 applications

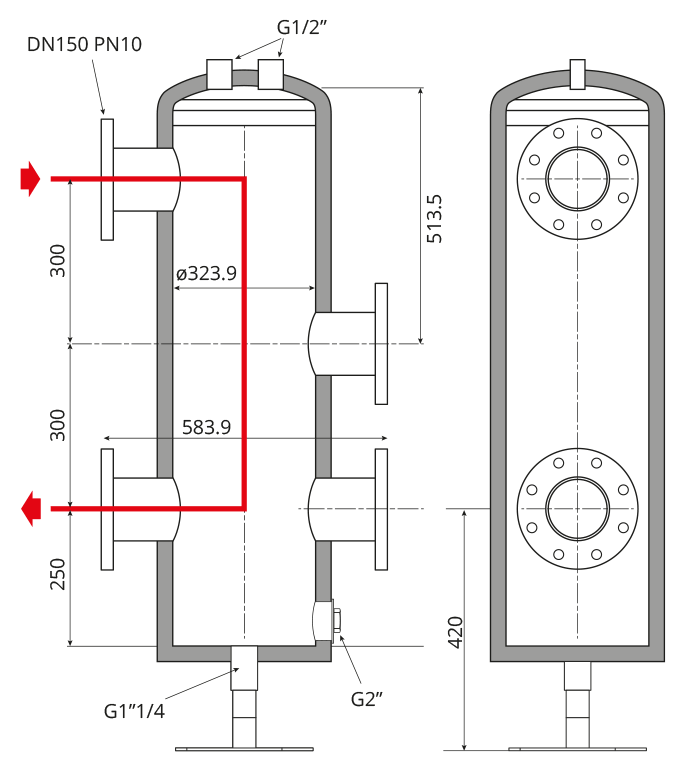

| Description | Part no. |
|---|---|

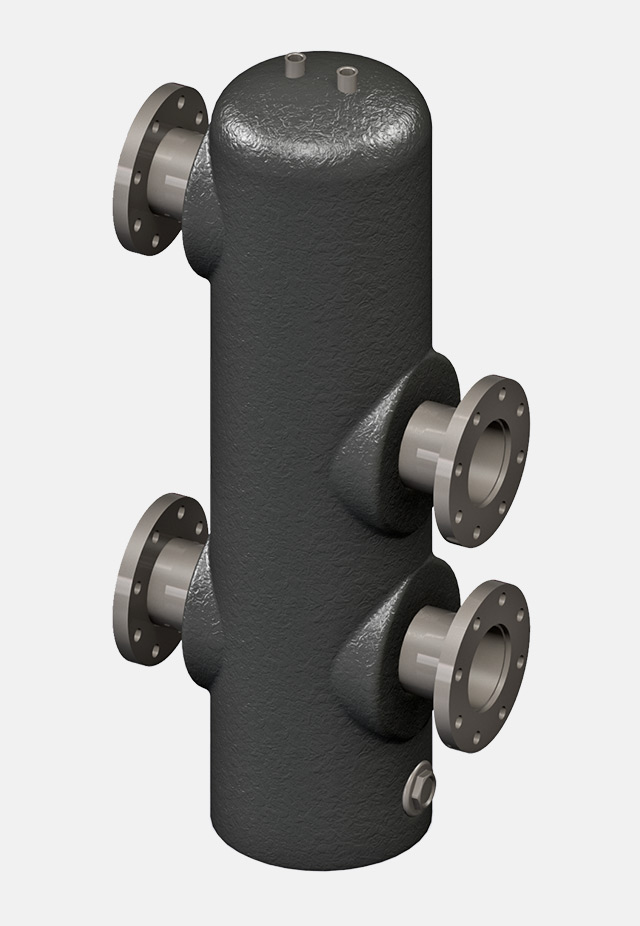

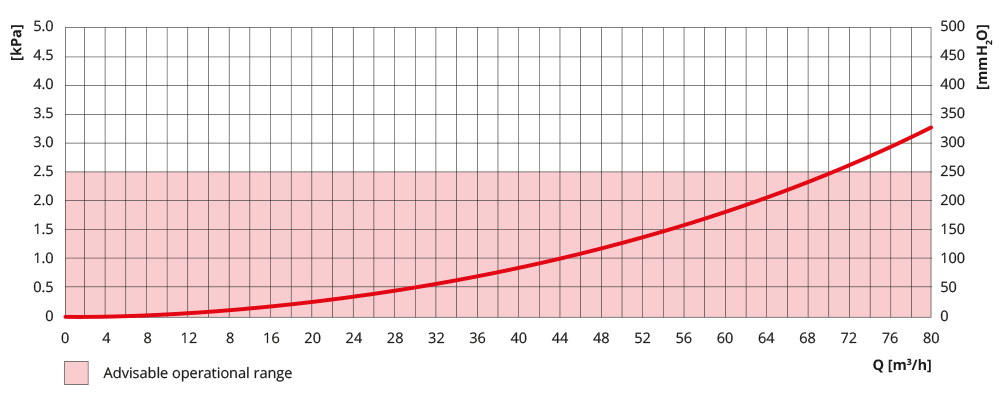

| HS 220 – DN40/DN50 – Hydraulic separator insulator | 49043689 |
| Technical specifications | |
|---|---|
| Output ΔT 20 K | 750 kW |
| Max. flow rate | 33 m³/h |
| Max temperature | 100°C |
| Max. pressure | 10 bar |
| D hydraulic separator | 220 mm |
| Nominal Ø of flanges | DN100 PN10 8 holes |
| Internal speed | 0.26 m/s |
| Speed at the entrance | 1.00 m/s |
| Material of low loss header | Fe EN 10217-1 |
| Material of insulation | Trocellen C080 RN2 sp 30 mm 0.034 W/mK |
| Max. overall dimension (packaging) |
L 1546 x W 386 x H 603 |
| Painted with epoxy powder coating | |
| Accessories | Description | Part no. |
|---|---|---|
| KIT CONNECTA PHS | Support hydraulic separator HS 220 | 49018215 |
| KIT CONNECTA F | DN100 PN10 8 holes flat flanges | 49156735 |
| KIT CONNECTA VC | DN100 PN10 8 holes flanges connection screws | 49156710 |
For further details and information on accessories, please go to the accessories page.
