DESCRIPTION
The Rhico DN50 TV3-300 mixing pump group is designed for temperature control of the primary circuit for either heating or cooling installations. It can be installed directly on the zone manifold or independently using a connection adapter kit DN65 and DN50.
The Rhico PFPR system is the first ready-to-use solution that supports twin head pump installations.
FEATURES
- Plug & Play module
- Possibility of right/left flow reversal installations
- Pump groups – ready for installation of twin pumps
- Easy access to the components
- Ready for the installation of temperature and pressure sensors
- Painted with epoxy powder coating
- Tested, insulated and ready to use
| Description | Part no. |
|---|---|
| TV3-300 DN50 – Mixing pump group – servomotor not included | 49043630 |
| Rotary electric actuator 230V 3P | 20317350 |
| Rotary electric actuator 24V 0÷10V | 20317351 |
| Technical specifications | |
|---|---|
| Output ΔT 5 K | 56 kW |
| Output ΔT 20 K | 225 kW |
| Max temperature | 100°C |
| Max. pressure | 10 bar |

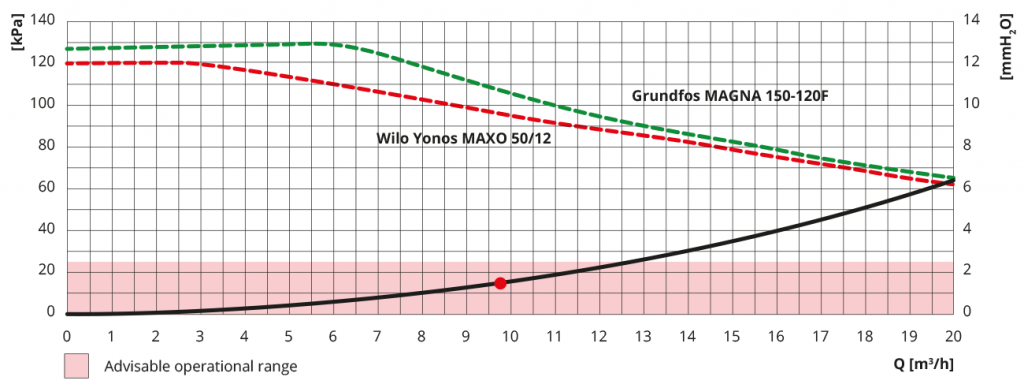

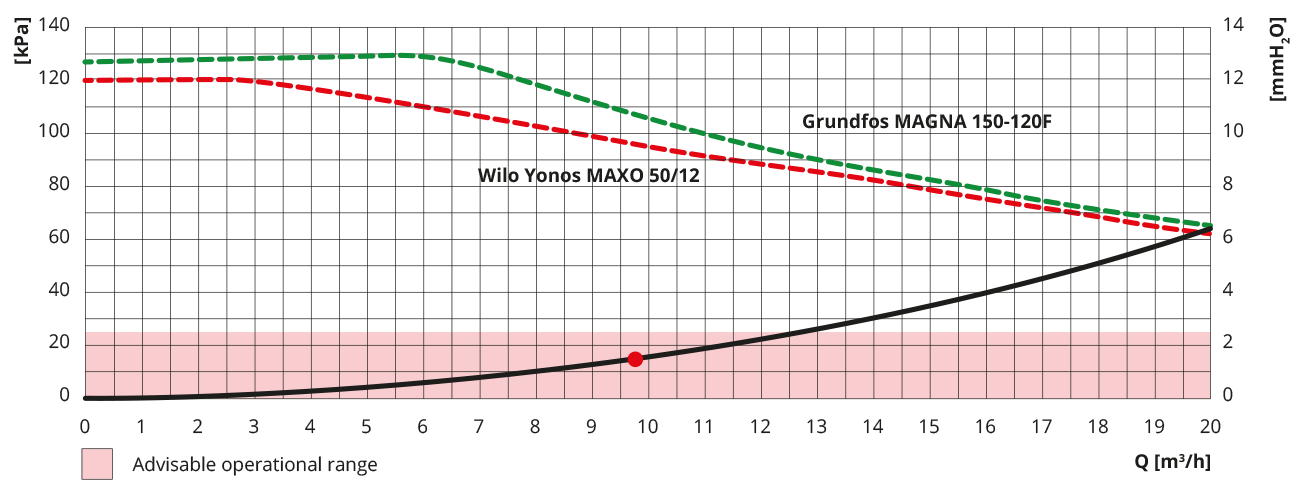

| Flow rate (ΔP 15 KPa) | 9.7 m3/h |
| Mixing valve Kvs | 40 |
| Nominal Ø | DN50 |
| Material | Fe EN 10217-1 |
| Material of insulation | Trocellen C080 RN2 sp 30 mm 0,034 W/mK |
| Material of insulation | FEPP 40 g/l sp 30 mm 0.035 W/mK |

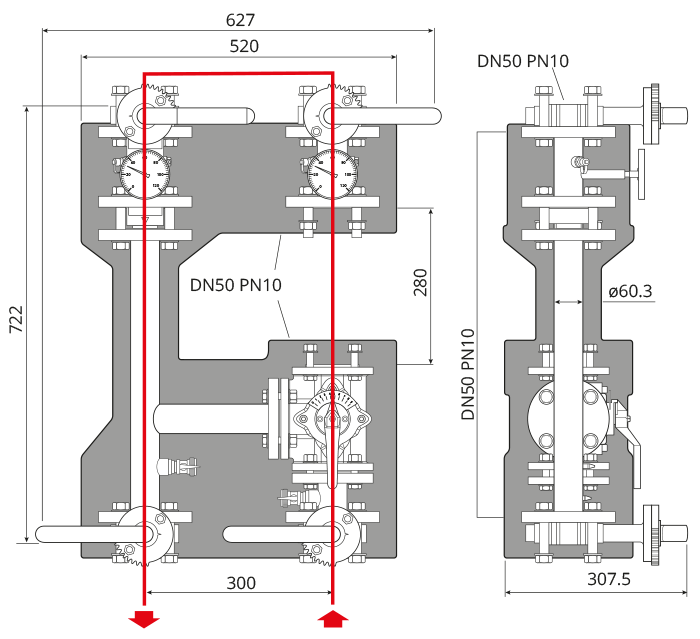

| Max overall dimension (packaging) |
L 940 x W 660 x H 477 |
| Painted with epoxy powder coating | |
| Accessories | Part no. |
|---|---|
| Grundfos MAGNA1 50-120 F (insulation included) |
20313516 |
| Grundfos MAGNA1 D 50-120 F | 20313517 |
| Insulation for Grundfos MAGNA1 D 50-120 F | 20290266 |
| Wilo YONOS MAXO 50/12 | 20313178 |
| Insulation for Wilo MAXO 50/12 | 20290271 |
| Wilo YONOS MAXO D 50/12 | 20313177 |
| Insulation for Wilo YONOS MAXO D 50/12 | 20290263 |
For further details and information on accessories, please go to the accessories page.
